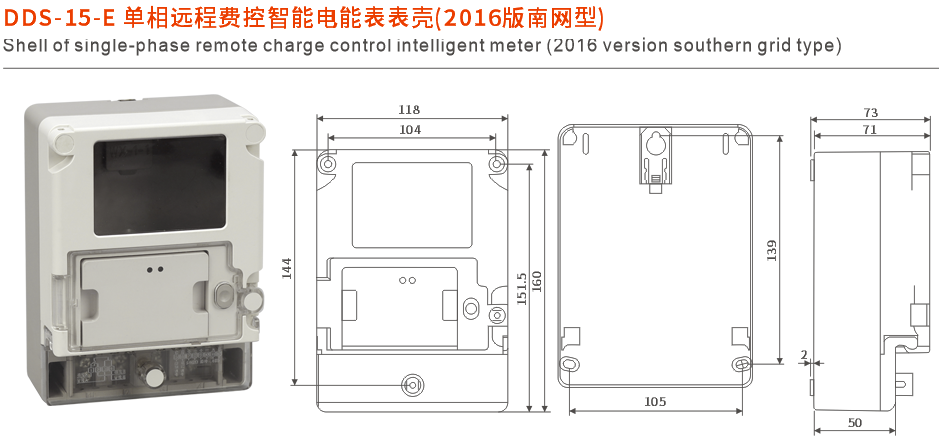

DDS-15-E单相远程费控智能电能表表壳

1172 2022-04-13


技术参数

◎规格:端钮盒铜条,小A(8×10.5)、中A(10×12)、大A(11×13)

◎脉冲信号线:2、4、6、8线或2、4、6、8铜件

◎电流配置:1.5(6)A带1-8个辅助端口

                     10(40)A带1-8个辅助端口

                     20(100)A带1-8个辅助端口

◎说明:16年版南网型表壳,带载波模块盒,带开盖记录柱、有

   轮显按键,拆分式端钮盒。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(8×10.5), middle

    A(10×12),large A(11×13)

◎Pulse signal lines:2,4,6,8 lines or 2,4,6,8 copper pieces

◎Current configuration: 1.5(30)A with 1-8 sets of auxiliary ports

                                       10(40)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

◎Note:the shell of 2016 version southern grid meter is equipped with

    carrier module box and recording column of shell open; it has slide-

    show buttons and split-type terminal box.
