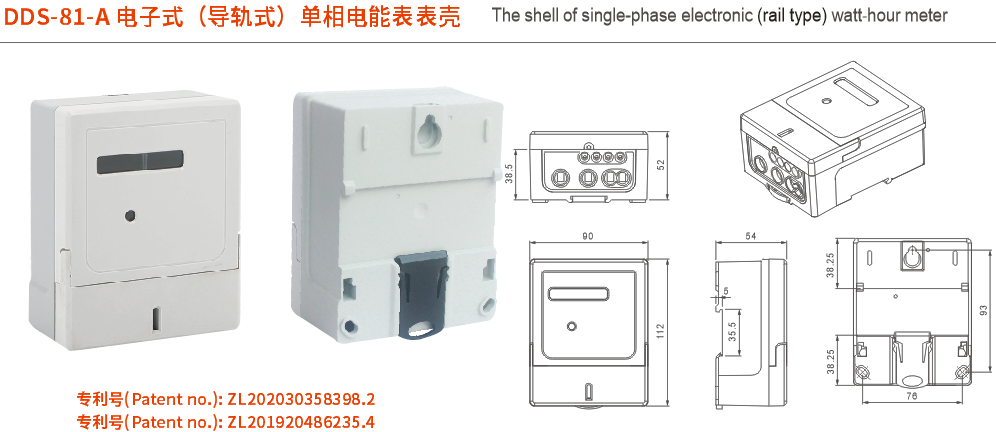

DDS-81-A电子式(导轨式)单相电能表表壳
技术参数
◎规格:端钮盒铜条,小A(7.5×9.5)、中A(9×11、10×12)
◎脉冲信号线:7、8、9、10线或7、8、9、10插片
◎电流配置:5(30)A带1-8组辅助端口
10(60)A带1-8组辅助端口
20(100)A带1-8组辅助端口
◎说明:采用塑料铅封,端子外置,可选配多种标牌、各种防窃
盖,压接式端钮盒,拆分式端钮盒。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(7.5×9.5 ),
middle A(9×11,10×12)
◎Pulse signal lines:7,8,9,10ines or7,8,9,10plug-in pieces
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note: it uses plastic seals with external terminal, it can be optionally
equipped with a variety of signs, all kinds of anti-theft cover, crimp
-type terminal box and split-type terminal box.
