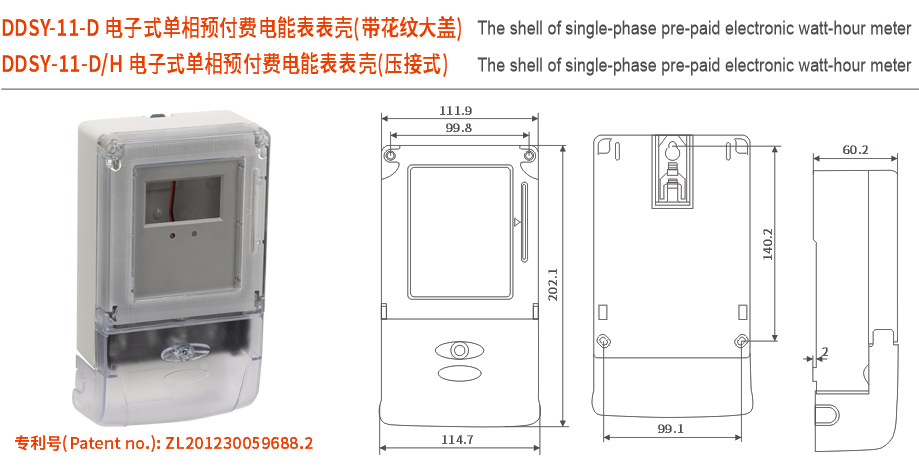

DDSY-11-D电子式单相预付费电能表表壳
技术参数
◎规格:端钮盒铜条,小A(8×10.5)、中A(9×11、10×12)、
大A(11×13)
◎脉冲信号线:2、4、6、8线或2、4插片
◎电流配置:5(30)A带1-8组辅助端口
10(60)A带1-8组辅助端口
20(100)A带1-8组辅助端口
◎说明:出口型表,端钮盒外置,可选配多种标牌、各种防窃盖、
压接式端钮盒、拆分式端钮盒。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(8×10.5 ), middle
A(9×11,10×12),large A(11×13)
◎Pulse signal lines:2,4,6,8 lines or 2,4 plug-in pieces
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note: export-type meter with external terminal box; it can choose a
variety of signs, kinds of anti-thett cover, crimp-type terminal box,
split terminal box.
