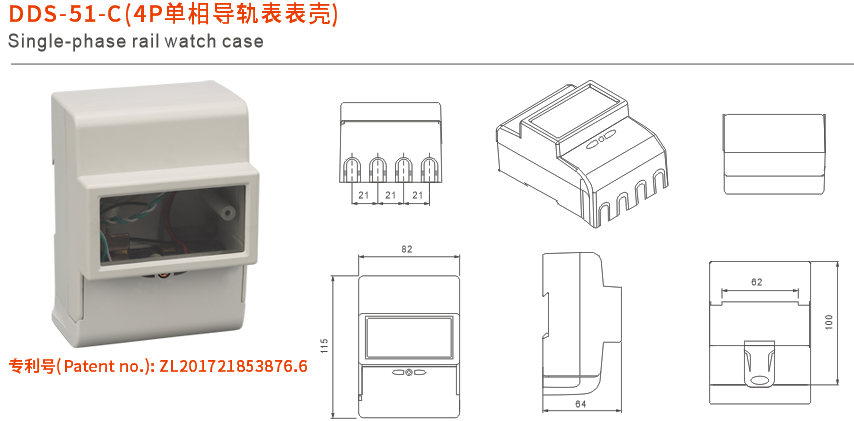

DDS-51-C(4P单相导轨表表壳)

1046 2022-04-13


技术参数

◎规格:压接式端钮盒,小A(1.5mm铜片)、中A(2.0mm铜片)、

   大A(2.5mm铜片)

◎脉冲信号线:5、6、7、8带线

◎电流配置:1.5(6)A带4组辅助端口

                      10(40)A带4组辅助端口

                      20(80)A带4组辅助端口

◎说明:原创设计,采用电能表接线方式,方便快捷,成本大幅

    度降低,防尘防潮设计,另可配各种阻值分流器。


TECHNICAL PARAMETERS

◎Specifications: crimp-type terminal box, small A(1.5mm sheet copper)

    middle A (2.0mm sheet copper), large A (2.5mm sheet copper)

◎pulse signal lines: 5,6,7,8 lines

◎Current configuration: 1.5(6) A with 4 sets of auxiliary ports

                                       10(40) A  with 4 sets of auxiliary ports

                                       20(80) A  with 4 sets of auxiliary ports

◎Note: with original design, it uses energy meter wiring method which

    is convenient and cost saving, dust-proof design can be equipped

    with a variety of resistance shunt.
