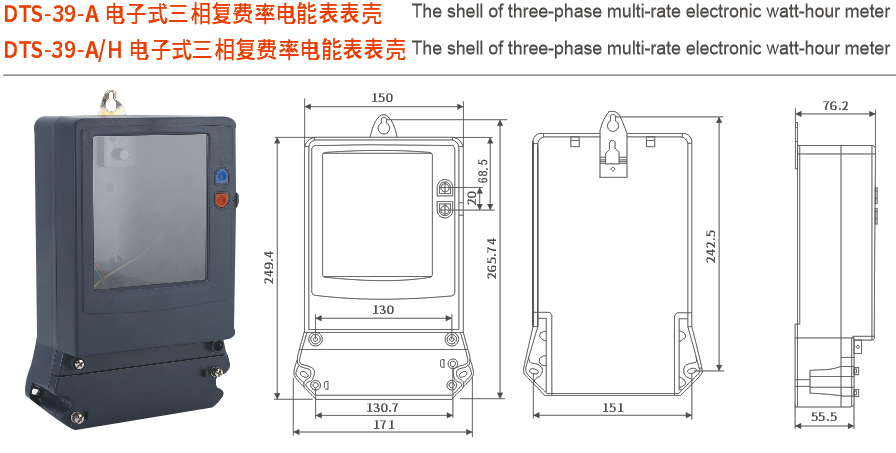

DTS-39-A电子式三相复费率电能表表壳
技术参数
◎规格:端钮盒铜条,小A(7×9)、中A(9×11、10×12)、
大A(11×13)
◎电流配置:三相四线1.5(6)A带10个辅助端口
三相四线10(40)A带10个辅助端口
三相四线20(100)A带10个辅助端口
另有三相三线小电流端口可选配
◎说明:采用拆分式端钮盒设计,经济实惠。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(7×9), middle A
(9×11, 10×12), large A(11×13)
◎Current configuration: three-phase four-wire 1.5(6)A with 10 auxiliary ports
three-phase four-wire 10(40)A with 10 auxiliary ports
three-phase tour-wire 20(100)A with 10 auxiliary ports
three-phase three-wire with low current port is optional
◎Note: it uses split terminal box which is convenient and affordable.
